SELF LOCKING SHAFT

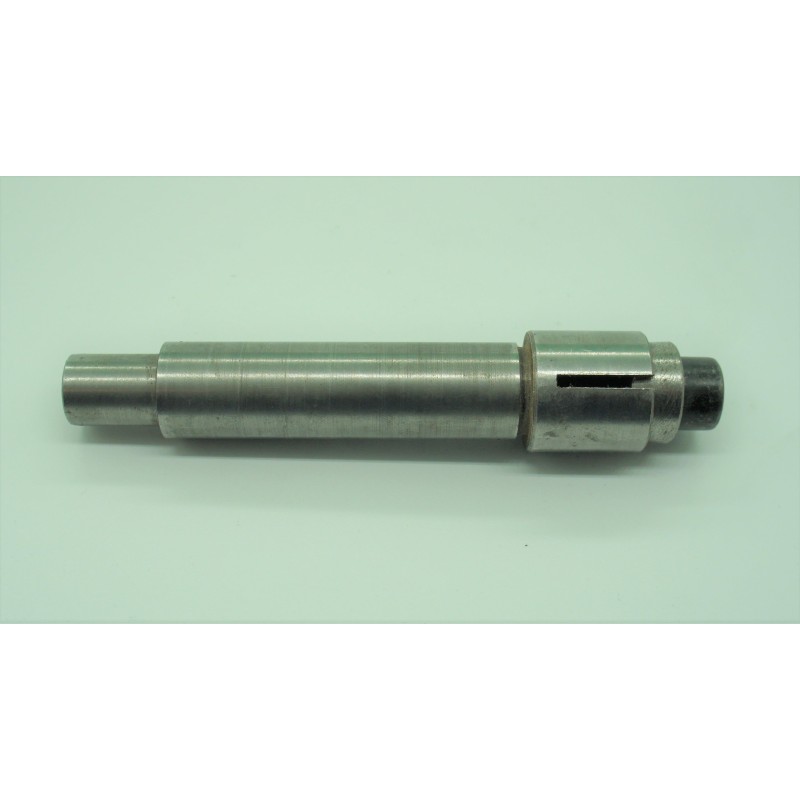

This is a shaft designed to support gears or pulleys in any drive mechanism.  It is self locking by virtue of a split collet on one end tensioned by a taper cone and bolt.

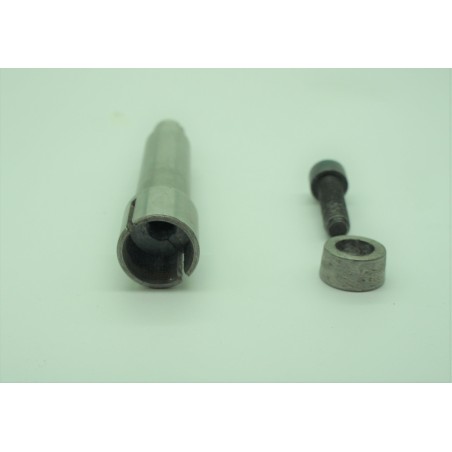

Bore your housing to fit the large and small end, then on the large end simply tighten the bolt against the tapered cone and it expand the end of the shaft to lock it in place.  No threaded ends or spacers required to set this shaft into the perfect location.

DIMENSIONS

SHAFT OVERALL LENGTH                             94 MM
SMALL END                                                   12 MM DIAMETER  X  15 MM LONG
BEARING AREA                                             16 MM DIAMETER  X  59 MM LONG
COLLET END                                                  20 MM DIAMETER  X  20 MM LONG
BOLT                                                              8 MM X 1.25

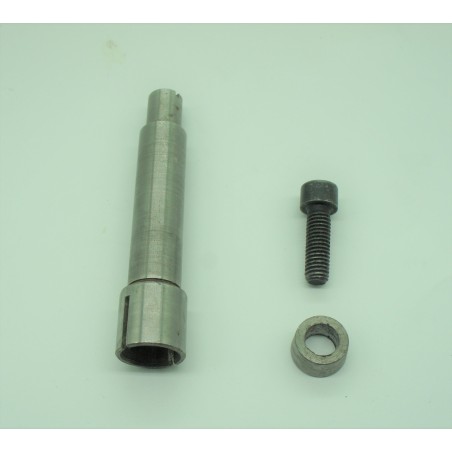

CONE                                                              8.5 MM LONG  TAPERS FROM 16.8 TO 15.8 MM
