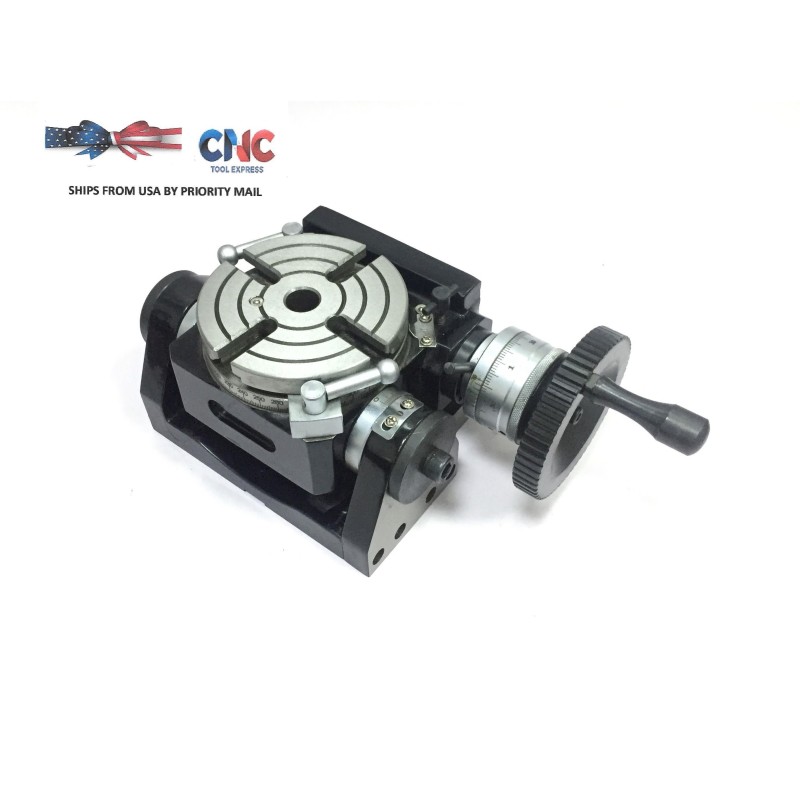

This rotary table set is a most versatile setup on mini mills like Taig or Sherline or small mills like Grizzly and PM.
This is the most versatile rotary available- not only works in horizontal and vertical positions, but any angle in between allowing milling of complex angles on your parts. The table is 4.3" in diameter and has a 90-1 ratio on the handwheel. The handwheel is a 60 tooth drive pulley allowing the easy bolt on addition of our CNC drive kits. Made from the finest fine grain castings and precision ground for accuracy.
There is a 360 degree scale around the perimeter of the main table with a metal pointer. The worm drive is on an eccentric and can be adjusted for minimum lash and continually over the life of the product, as well as the ability to rotate out of mesh so the table can be rotated freely by hand.
Included is a 3" diameter 3 jaw scroll chuck which can be adapted easily to the rotary table either with an adaptor plate as shown in the photo or by drilling and tapping the table to accept the 3 mounting bolts.
NOTE: The adaptor shown in the photo is not included in the package- it is for illustration only.
